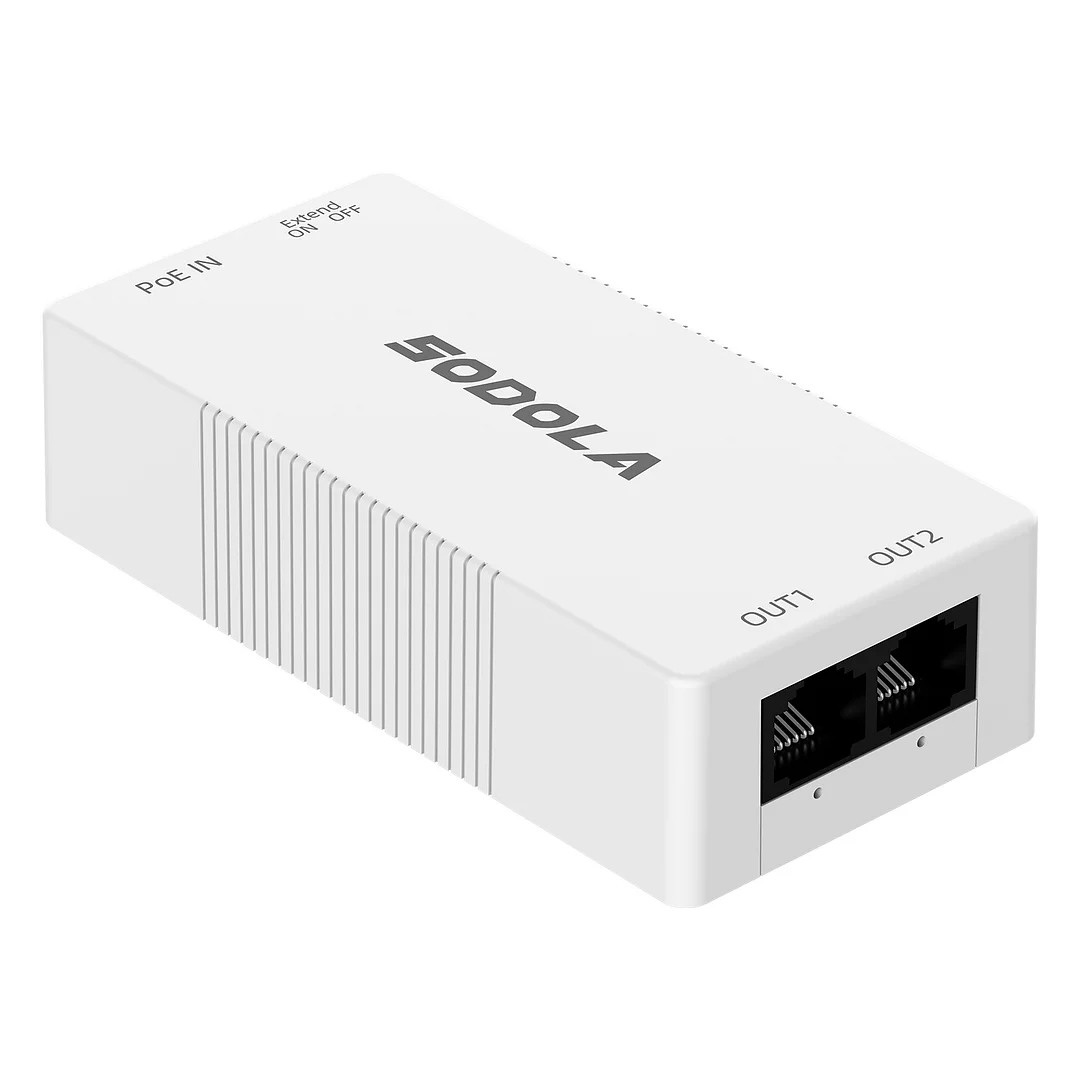

- 【1 in 2 out PoE Extender & Repeater】The SODOLA 100Mbps PoE Extender Repeater, also known as a PoE Splitter and PoE Passthrough Switch, features a 1 in 2 out design, allowing you to connect one PoE source to the extender and simultaneously power two devices.
- 【IEEE 802.3 af/at Compliance】This PoE Repeater adheres to IEEE 802.3 af/at standards, with an input max of 30W and an output max of 25W. It operates with a PoE voltage range of 38-57 Vdc and supports standard PoE pinouts for both input and output.
- 【Extended Reach of 250 Meters】Our PoE Extender offers a one-click 250-meter extension from its initial 100-meter front-end transmission, fulfilling your network security surveillance needs. Please note that when the 250-meter extension mode is enabled, the network speed will reduce to 10 Mbps for reliable and consistent performance.
- 【4KV Lightning Protection for Enhanced Safety】Equipped with robust 4KV lightning protection, this PoE Passthrough Switch for Security Systems IP Camera safeguards your network from potential electrical storm damage, ensuring uninterrupted and secure operation even in harsh weather conditions.
- 【Ideal for Surveillance Systems】The PoE Extender is easy to set up with no software installation or configuration required. Perfect for Security Camera CCTV Surveillance, it significantly extends both network signal transmission and power supply distance.
- 【Compact & Wall-Mounted Design】The compact size of the POE repeater allows for easy wall-mounting, taking up minimal space and fitting seamlessly into all corners for convenient installation.
SL-SWTG124AS:📖(Click here)
SL-SWTGW215AS:📖(Click here)
SL-SWTGW218AS:📖(Click here)
SL-SWTGW2216AS:📖(Click here)
SL-SWTGW2224AS:📖(Click here)
SL-SWTGW2C8F:📖(Click here)
SL-SWTG3C12F:📖(Click here)
SL-SWTG3DE48A6S:📖(Click here)
SL-2444SGMP-400:📖(Click here)
SL-AFGW-242S-400:📖(Click here)
SL-SG008W:📖(Click here)
SL-SG0024W:📖(Click here)
SL-SWTGW2C80N:📖(Click here)
SL-SWTGW0108P：📖(Click here)
SL902-SWTGW218AS：📖(Click here)
SL902-SWTGW124AS：📖(Click here)
SL902-SWTGW215AS：📖(Click here)
SL510S-4T2XS：📖(Click here)
SL510S-5T：📖(Click here)
SL-SWTGW2C48NS：📖(Click here)
SL-AXGW-SWTG2224AS：📖(Click here)
- SL-SWTG124AS:No update(1.9 and above)
- SL-SWTGW215AS:No update(1.9 and above)
- SL-SWTGW218AS:No update(1.9 and above)
- SL-SWTGW2216AS: HRRF_F11132_SL-SWTGW2216AS_0210_en(Click here)
- SL-SWTGW2224AS:HRRF_F11132_ SL-SWTGW2224AS_0210_en(Click here)
- SL-SWTGW2C8F:HRRF_F11129_SL-SWTGW2C8F_1118_en(Click here)
- SL-SWTG3C12F:No update
- SL-SWTGW2C80N:HRRF_F11132_SL-SWTGW2C80N_0212_en.(Click here)
- SL-AFGW-242S-400:6.7 Version Download(Click here)
- SL-SG008W:No update
- SL-SG0024W:No update
- SL-SWTGW2C48NS:HRRF_F11134_SL-SWTGW2C48NS_0221_en(Click here)
- SL902-SWTGW215AS:No update
- SL902-SWTGW124AS:No update
- SL902-SWTGW218AS:No update
- SL510S-4T2XS:No update
- SL520S-5T1XS:No update
- SL520S-5T1XS-150:No update
- SL510S-5T:No update
- SL-SWTGW0108P:No update
- SL-AXGW-SWTG2224AS:No update
-
-
Please be advised that the firmware versions of these switches have undergone multiple upgrades and changes. Attempting to skip versions during upgrades may pose a risk of system crash. Products purchased recently typically come with the latest firmware version. Kindly refrain from downloading firmware versions from other sources and upgrading without authorization. Before each upgrade, you may take a screenshot of the switch's current firmware version and send it to our after-sales email at support@sodola-network.com for consultation.
Unzip the package and use the bin firmware inside to upgrade it.The firmware upgrade takes about five minutes, do not interrupt the upgrade and perform other operations during this time, otherwise it can easily cause the system to crash
Please Attention:
1. Do not power down during the upgrade process
2. After the upgrade is completed, restart the system
3. Clear IE cache and log in again
The configuration will be lost after upgrade. If you want to back up the configuration, please refer to the following methods:
1: Complete the configuration or save it before upgrading the firmware. Path: tools > save; the configuration will not be lost after the upgrade. 2: Backup the settings, export the configuration file and save it, upgrade to a new version, and then re-import the configuration file for recovery. Path: Tools > Configuration Backup
