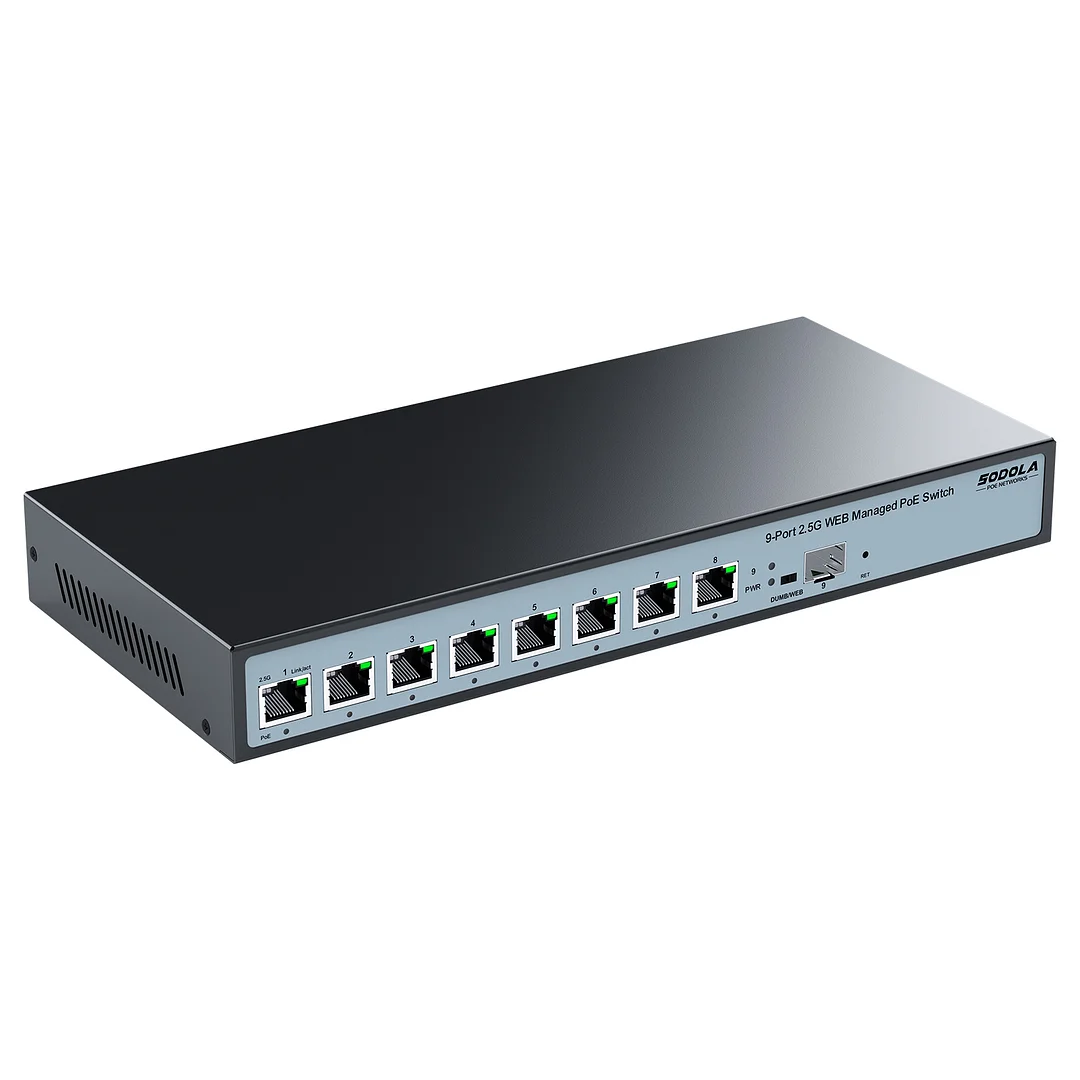

SL-SWTGW0108P
- 【2.5gbit PoE Switch】8*100/1000/2500M PoE ports+1*10G SFP+ ports,the 2.5gbe switch support 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x standard and automatic negotiation in duplex mode and Auto MDI/MDIX.
- 【120W Power Budget】The Port 1 supports IEEE802.3af/at/poe++/bt,max 90W PoE. The port 2-8 supports IEEE802.3af(15.4W)IEEE802.3at(30W).
- 【Easy Web Managed PoE Switch】Effortlessly web managed switch, device status, and configurations via the intuitive web interface, and a suite of configurations – Link Aggregation,VLAN, QoS, Multicast, MAC,RSTP.((Note: Please set IP address via IPV4 first before log in this switch).
- 【Wall-Mounted Supported】Metal housing, no built-in fan, reduces operating noise. It supports desktop placement and Wall-Mounted installation. Multiple installation methods and make it more flexible.
SL-SWTG124AS:📖(Click here)
SL-SWTGW215AS:📖(Click here)
SL-SWTGW218AS:📖(Click here)
SL-SWTGW2216AS:📖(Click here)
SL-SWTGW2224AS:📖(Click here)
SL-SWTGW2C8F:📖(Click here)
SL-SWTG3C12F:📖(Click here)
SL-SWTG3DE48A6S:📖(Click here)
SL-2444SGMP-400:📖(Click here)
SL-AFGW-242S-400:📖(Click here)
SL-SG008W:📖(Click here)
SL-SG0024W:📖(Click here)
SL-SWTGW2C80N:📖(Click here)
SL-SWTGW0108P：📖(Click here)
SL902-SWTGW218AS：📖(Click here)
SL902-SWTGW124AS：📖(Click here)
SL902-SWTGW215AS：📖(Click here)
SL510S-4T2XS：📖(Click here)
SL510S-5T：📖(Click here)
SL-SWTGW2C48NS：📖(Click here)
SL-AXGW-SWTG2224AS：📖(Click here)
- SL-SWTG124AS:No update(1.9 and above)
- SL-SWTGW215AS:No update(1.9 and above)
- SL-SWTGW218AS:No update(1.9 and above)
- SL-SWTGW2216AS: HRRF_F11132_SL-SWTGW2216AS_0210_en(Click here)
- SL-SWTGW2224AS:HRRF_F11132_ SL-SWTGW2224AS_0210_en(Click here)
- SL-SWTGW2C8F:HRRF_F11129_SL-SWTGW2C8F_1118_en(Click here)
- SL-SWTG3C12F:No update
- SL-SWTGW2C80N:HRRF_F11132_SL-SWTGW2C80N_0212_en.(Click here)
- SL-AFGW-242S-400:6.7 Version Download(Click here)
- SL-SG008W:No update
- SL-SG0024W:No update
- SL-SWTGW2C48NS:HRRF_F11134_SL-SWTGW2C48NS_0221_en(Click here)
- SL902-SWTGW215AS:No update
- SL902-SWTGW124AS:No update
- SL902-SWTGW218AS:No update
- SL510S-4T2XS:No update
- SL520S-5T1XS:No update
- SL520S-5T1XS-150:No update
- SL510S-5T:No update
- SL-SWTGW0108P:No update
- SL-AXGW-SWTG2224AS:No update
-
-
Please be advised that the firmware versions of these switches have undergone multiple upgrades and changes. Attempting to skip versions during upgrades may pose a risk of system crash. Products purchased recently typically come with the latest firmware version. Kindly refrain from downloading firmware versions from other sources and upgrading without authorization. Before each upgrade, you may take a screenshot of the switch's current firmware version and send it to our after-sales email at support@sodola-network.com for consultation.
Unzip the package and use the bin firmware inside to upgrade it.The firmware upgrade takes about five minutes, do not interrupt the upgrade and perform other operations during this time, otherwise it can easily cause the system to crash
Please Attention:
1. Do not power down during the upgrade process
2. After the upgrade is completed, restart the system
3. Clear IE cache and log in again
The configuration will be lost after upgrade. If you want to back up the configuration, please refer to the following methods:
1: Complete the configuration or save it before upgrading the firmware. Path: tools > save; the configuration will not be lost after the upgrade. 2: Backup the settings, export the configuration file and save it, upgrade to a new version, and then re-import the configuration file for recovery. Path: Tools > Configuration Backup
